Flow-Calculation-System
Technical Data
| Measuring range | 0.5 to 100 m/s |
| Accuracy | 1.3 % |
| Measuring principle | Differential pressure methos - Pitot static tube |
Low-speed-Module
Technical Data
| Measuring range | 0.125 to 5 m/s |
| Accuracy | ±2 % m.v. ±0.5 % f.s. |
| Measuring principle | Thermoelectrical anemometer |
Laser Doppler Velocimetry
Technical Data
| Laser power | 75 mW to 500 mW |
| Accuracy | 0.2 % |
| Wavelength | 532 nm |
Traversing
Technical Data
| Available travel paths | 200 mm to 2,000 mm (in steps of 100 mm) |
| Limit switches | with 2 mechanical limit / reference switches |
| Weight | ~7.6 kg/m |
Turntable
Technical Data
| Diameter of sensor shaft | max. 100 mm |
| Angular transmission accuracy | 0.033° |
| Repetitive positioning accuracy | 0.004° |
Extension module volume flow
Technical Data
| Measuring range volume flow | depends on wind tunnel |
| Inner diameter | 1,000 mm |
| Length | 1,200 mm |
Steamgenerator
Technical Data
| Diameter steam outlet | 4 mm & 5 mm |
| Volume of steam tank | 50 l |
| Dimensions (width, height, length) | 450 x 950 x 1,250 mm |
Heat exchanger
Technical Data
| Cooling temperature | ambient conditions ±1°C |
| Cooling power | depends on wind tunnel |
| Dimension | Adapted to wind tunnel |

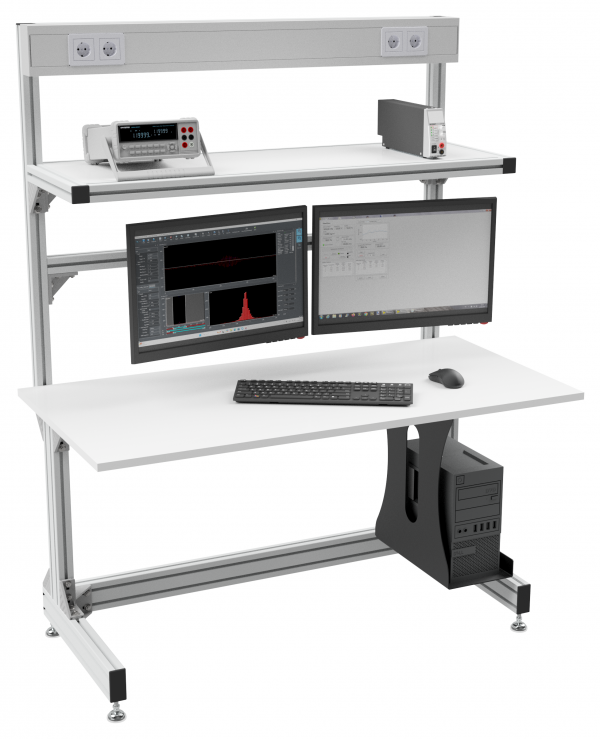

Wind tunnel desk
Technical Data
| Ergonomic desk | Workstation with dual monitor |
| Laboratory power supply and digital multimeter | Optional height adjustment |
| Dimensions (width, height, length) | 1,300 x 1,750 x 750 mm |

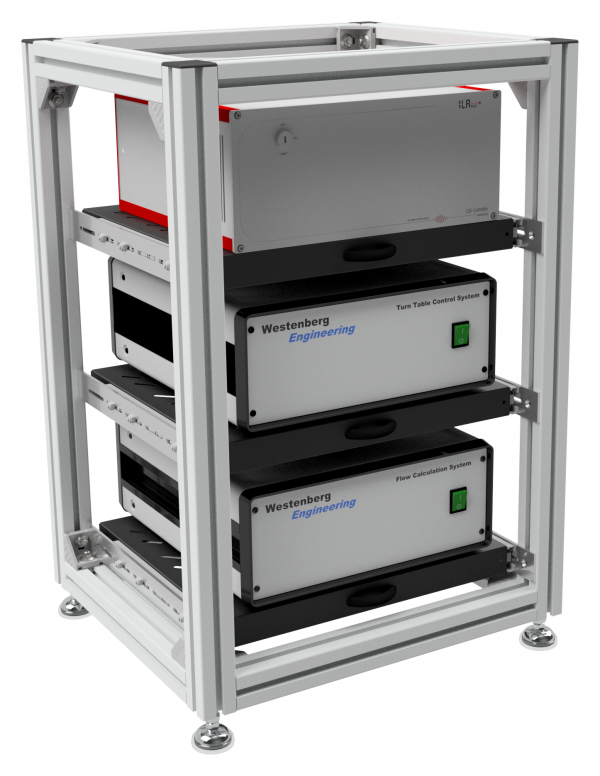

Controller Rack
Technical Data
| Space for 19" measuring devices | 3 pull-out shelves |
| Solid aluminum profile construction | Modular design |
| Dimensions (width, height, length) | 550 x 800 x 500 mm |
